Features
- 3U VPX carrier card
- Conduction or air cooling
- x4 PCI-Express XMC interface
- 32 bit 66 MHz PCI PMC interface
- P14 and P16 IO routing
- No drivers needed
Description

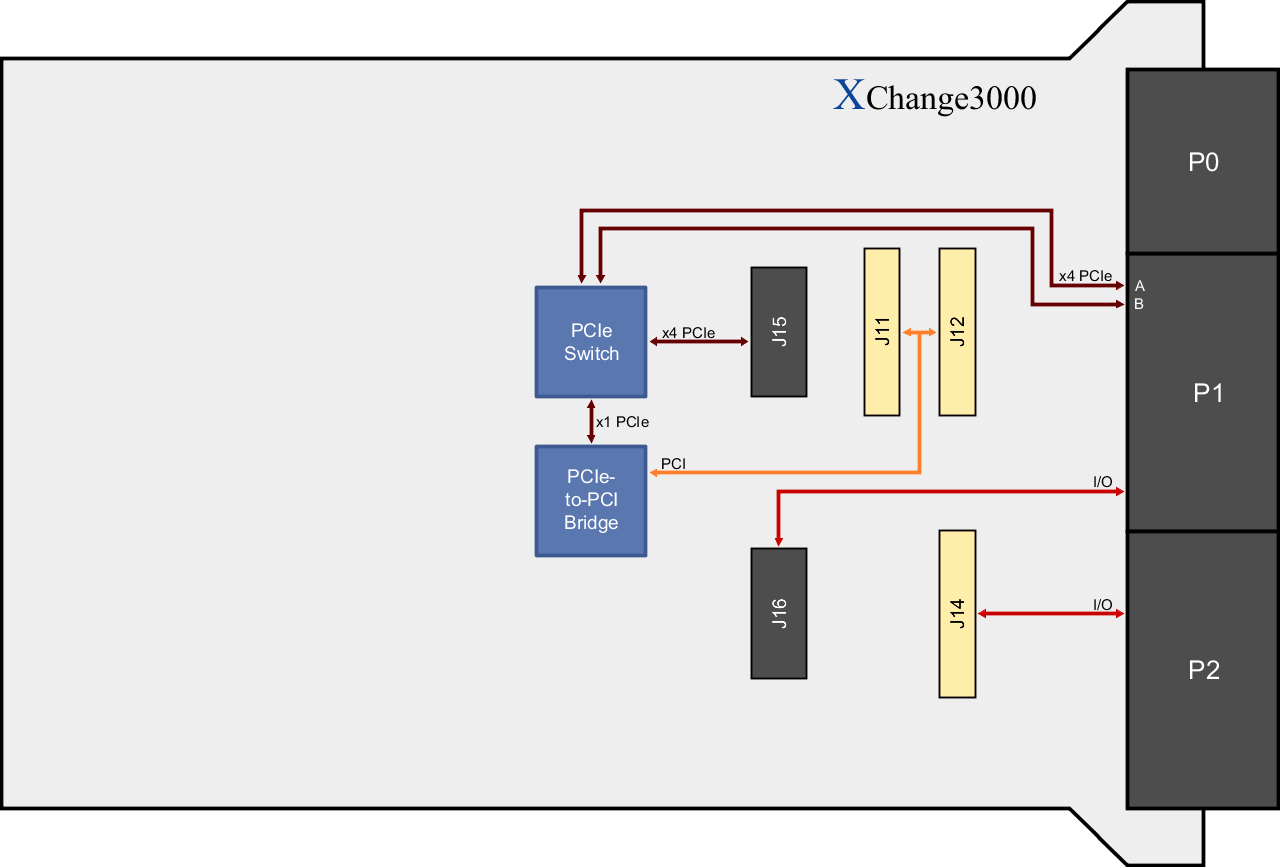

The XChange3000 is a 3U VPX-REDI module supporting a single width PrPMC or XMC card. The XChange3000 easy integration of standard mezzanine cards into a modern VXP backplane.
Both PrPMC and XMC interfaces are active simultaneously.
Technical Specifications
VPX
- x4 PCI-Express on port A
- x4 PCI-Express on port B
- Either port A or port B may be non-transparent
PMC
- PMC may be monarch
- 66 MHz 32 Bit PCI
- P14 to P2 IO routing
XMC
- x4 PCI-Express interface
- XMC may be root
Physical Characteristics
- 3U VPX form factor
- Dimensions: 100 mm x 160 mm,
10-mm stacking height
Environmental Requirements
- Supported ruggedization levels (see chart):
Level 1, Level 2, Level 3, Level 4, Level 5 - Humidity: 0% to 95% non-condensing
Power Requirements
- Maximum power consumption:
TBD W
