Features
- OpenVPX™ standards-ready
- Six Fat Pipe PCI Express x4 ports
- Six ultra thin pipe 1000Base-X Ethernet ports
- Two ultra thin pipe 1000Base-X Ethernet ports for cascading or two thin pipe 10/100/1000Base-T Ethernet port for external I/O
- Supports one XMC slot with up to a x8 PCI Express Link
- Supports two 10/100/1000Base-T and RS-232 XMC I/O
- Managed switch options via XMC (layer 2 or
layer 3) - IPv4 and IPv6 unicast routing support
- Optional VITA 46.11 Chassis Management Controller (ChMC) support
Description

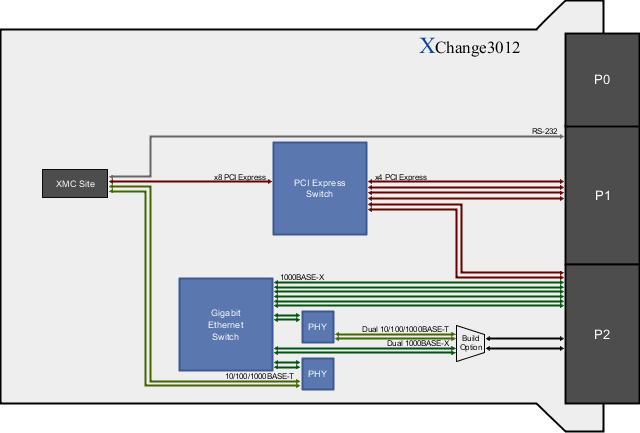

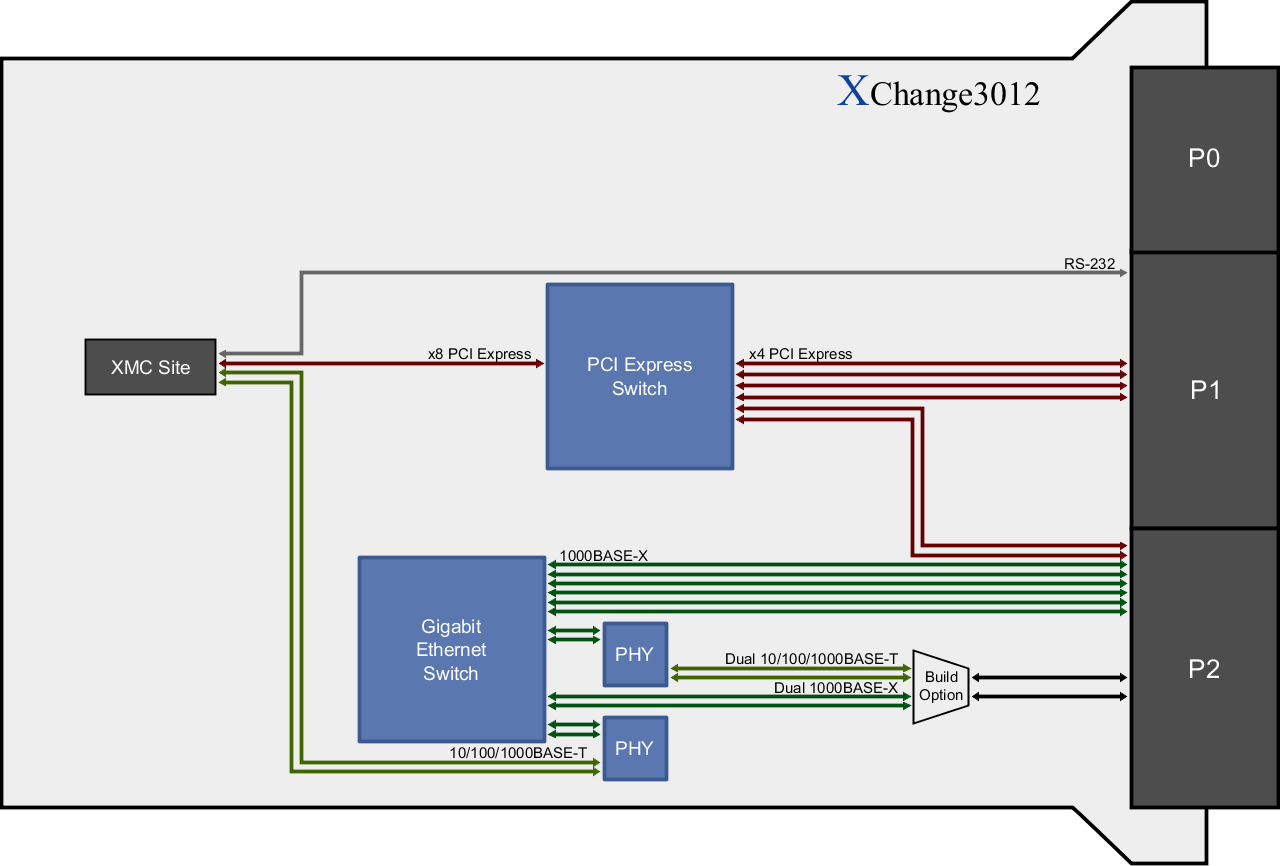

The XChange3012 is a 3U conduction- or air-cooled VPX module designed in accordance with OpenVPX™ system architecture specification that provides both PCI Express and Ethernet switches. The PCIe and Gigabit Ethernet fabrics provide switching for a star topology. The Ethernet fabrics allow VPX cards within the system to communicate and also have access to an outside local area network.
The XChange3012 supports an XMC interface via a PCI Express link capable of supporting up to 8 lanes. Dual 10/100/1000Base-T rear I/O from the XMC are also routed directly to the XChange3012's Gigabit Ethernet switch. The XChange3012 can optionally support layer 2 or layer 3 management via an XMC 10/100/1000Base-T interface. XMC RS-232 COM rear I/O can be brought out the P1 connector.
Technical Specifications
Ethernet
- One 10-port Gigabit Ethernet switch
- Six 1000Base-X VPX interfaces
- Two 10/100/1000Base-T external interfaces
- Two 10/100/1000Base-T XMC interfaces
- IPv4 and IPv6 unicast routing support
- Optional layer 2 or layer 3 management via XMC 10/100/1000Base-T port
PCI Express
- One 32 lane PCIe switch
- One 8 lane XMC interface
- Six 4 lane VPX interfaces
XMC
- One XMC site
- Rear RS-232 I/O routed to P1
- Dual 10/100/1000Base-T I/O routed to the Ethernet switch
- VITA 46.11 Chassis Management Controller (ChMC) support
Environmental Requirements
- Supported ruggedization levels (see chart below):
Level 1, Level 2, Level 3, Level 4, Level 5 - Humidity: 0% to 95% non-condensing
Physical Specification
- Dimensions: 100 mm x 160 mm
- 0.8" or 1.0" pitch 3U VPX
Power Requirements
- Maximum power consumption: 10 W
