Features
- 3U VPX Rear Transition Module (VITA 46.10)
- Support for Extreme Engineering Solutions’ 3U VPX integrated PCI Express and Gigabit Ethernet fabric switch
- Two RJ-45 connectors for dual 10/100/1000Base-T ports from the XChange3012
- One Mini DB-9 connector for RS-232 port from an optional XMC mounted on the XChange3012
- 1” pitch
Description

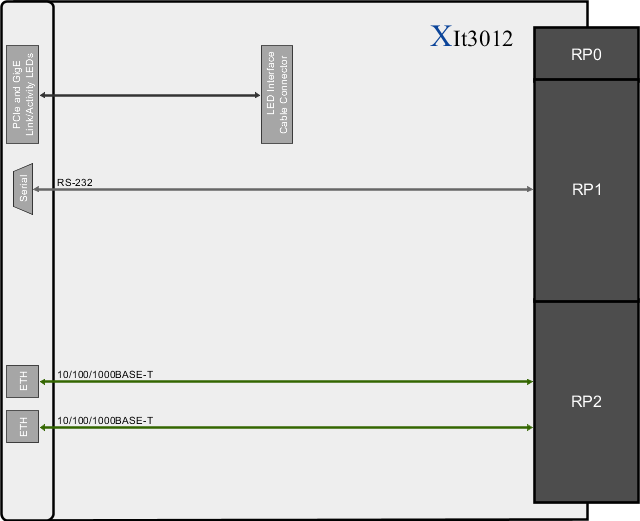

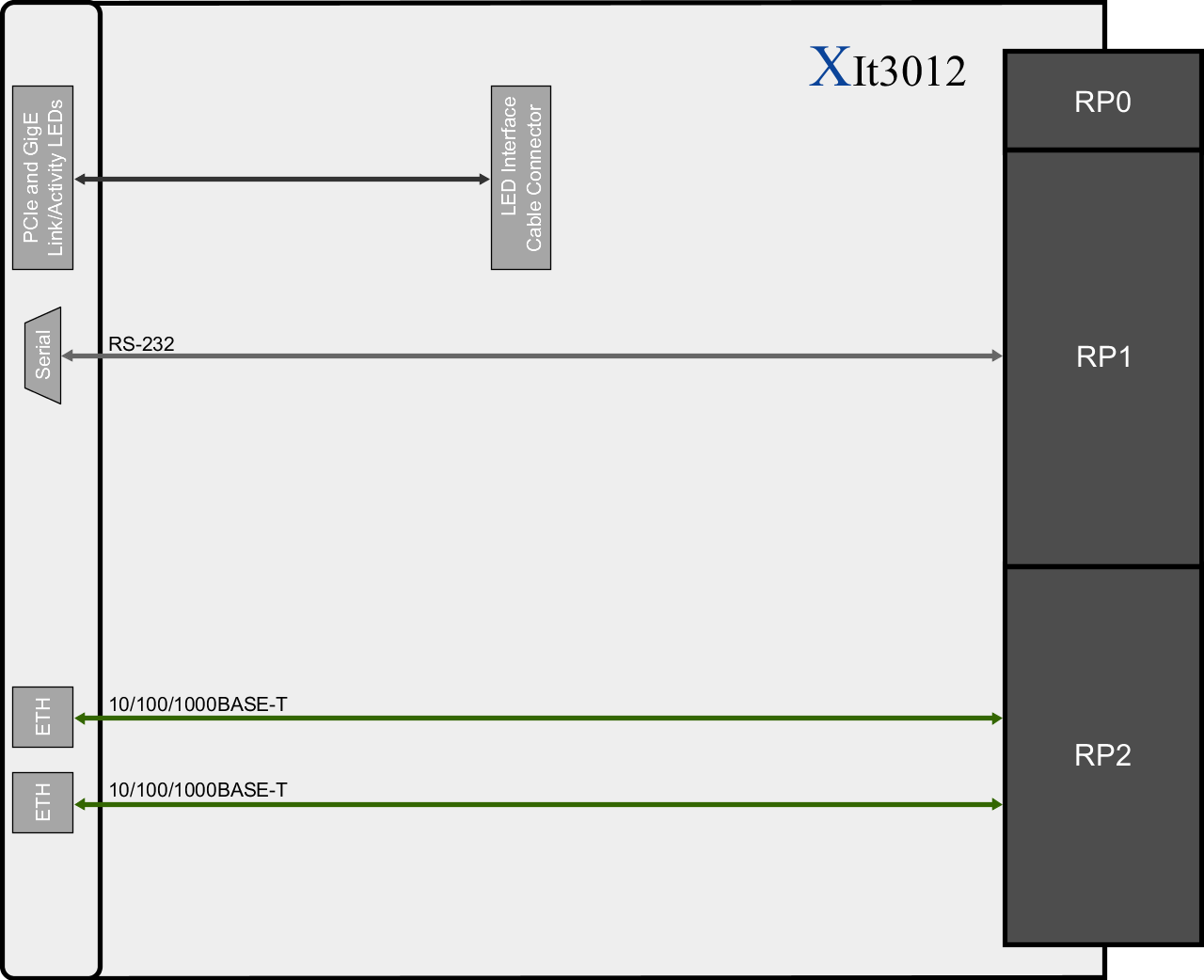

The XIt3012 provides access to the two 10/100/1000Base-T ports from the XChange3012 integrated PCI Express and Gigabit Ethernet switch. The XChange3012 also provides a Mini DB-9 connector for interfacing with RS-232 I/O from an XMC installed on the XChange3012.
Technical Specifications
Back Panel I/O
- Two RJ-45 connectors for dual 10/100/1000Base-T ports
- One Mini DB-9 for XMC RS-232 port
Physical Characteristics
- 3U VPX RTM (VITA 46.10) form factor
- Dimensions: 100 mm x 81.5 mm
- 1" pitch
Environmental Requirements
- Supported ruggedization levels (see chart below):
Level 1 - Humidity: 0% to 85% non-condensing
