Features
- Desktop development system for air-cooled modules
- Supports up to fifteen 0.8" or twelve 1.0" pitch slots
- Standard VPX and cPCI configurations in stock
- OpenVPX compliant
- Customizable with X-ES and 3rd party components
- Removable side covers for debug access
- Up to 20 CFM per slot
- RTM (Rear Transition Module) support for maximum I/O flexibility
- Front panel DC enable power and reset switches
- Front panel power and reset LEDs
- Up to 550W of total simultaneous power
- 12V, 5V, 3.3V, +/-12V_AUX and 3.3V_AUX
- 100-240 VAC, 50/60 Hz power input
Description

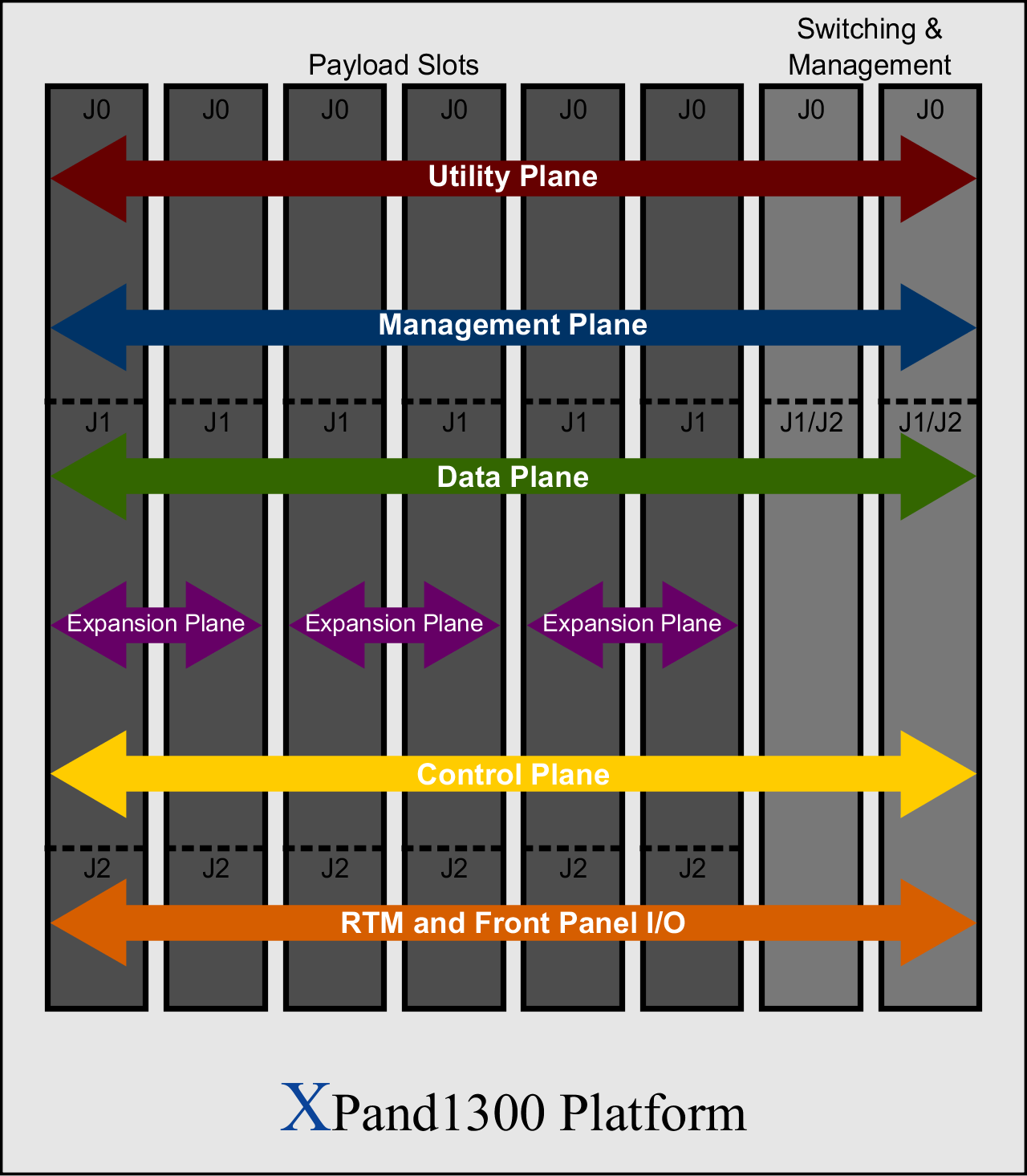

The XPand1300 is a low-cost flexible development platform. This system supports up to twelve 1” or up to fifteen 0.8” pitch air-cooled VPX (VITA 48.1) and cPCI (PICMG 2.0) modules. 550W of total simultaneous power is provided, which can be distributed as up to 50A on 12V, up to 50A on 5V, and up to 25A on 3.3V. Up to 20CFM of air flow is provided per slot.
X-ES platforms, including the XPand1300, provide a feature rich solution for system development. RTMs provide maximum I/O flexibility and rapid system prototyping. Power and reset LEDs are provided for system status. A momentary push button and debug access are provided for reset and a switch is provided for DC Power Enable.
The XPand1300 is currently available for purchase in several rapid development standard configurations. Custom configurations of modules, RTMs, and backplanes are also available utilizing X-ES and 3rd party components. Please consult your X-ES sales contact today for your ideal rapid development solution.
Technical Specifications
Form Factor
- 3U VPX (VITA 48.2) 1” or 0.8” pitch
- 3U cPCI (PICMG 2.0)
- 3U VPX (VITA 46.10) or cPCI RTM
Slots
- Twelve 1.0” pitch slots
- Fifteen 0.8” pitch slots
Power
- 550W total simultaneous power
- Up to 50A on 12V
- Up to 50A on 5V
- Up to 25A on 3.3V
- Up to 8A on 12V_AUX
- Up to 1.5A on - 12 V AUX
- Up to 8A on 3.3V_AUX
Cooling
- Up to 20 CFM per slot
- Standard configuration of 10 CFM per slot
- Removable chassis side panels
- Optional VITA 48.1 slot blockers
Physical Characteristics
- 13.5 in (W), 13.5 in (H), 11.6 in (L)
- 19 lbs with backplane and power supply
