Features
- Freescale QorIQ™ P2020 processor with dual PowerPC e500 cores at up to 1.2 GHz
- Conduction cooling
- Extended shock and vibration tolerance
- Up to 4 GB of DDR3-800 ECC SDRAM
- Up to x4 PCI Express or Serial RapidIO interface to P15
- PCI PrPMC interface
- Two Gigabit Ethernet ports to P14 or P16
- Two RS-232/422/485 serial ports to P14 or P16
- USB 2.0 port
- Up to 256 MB of NOR flash (with redundancy)
- Up to 8 GB of NAND flash
- Detachable front panel for development
- Linux LSP
- Wind River VxWorks BSP
- QNX Neutrino BSP
- Green Hills INTEGRITY BSP
Description

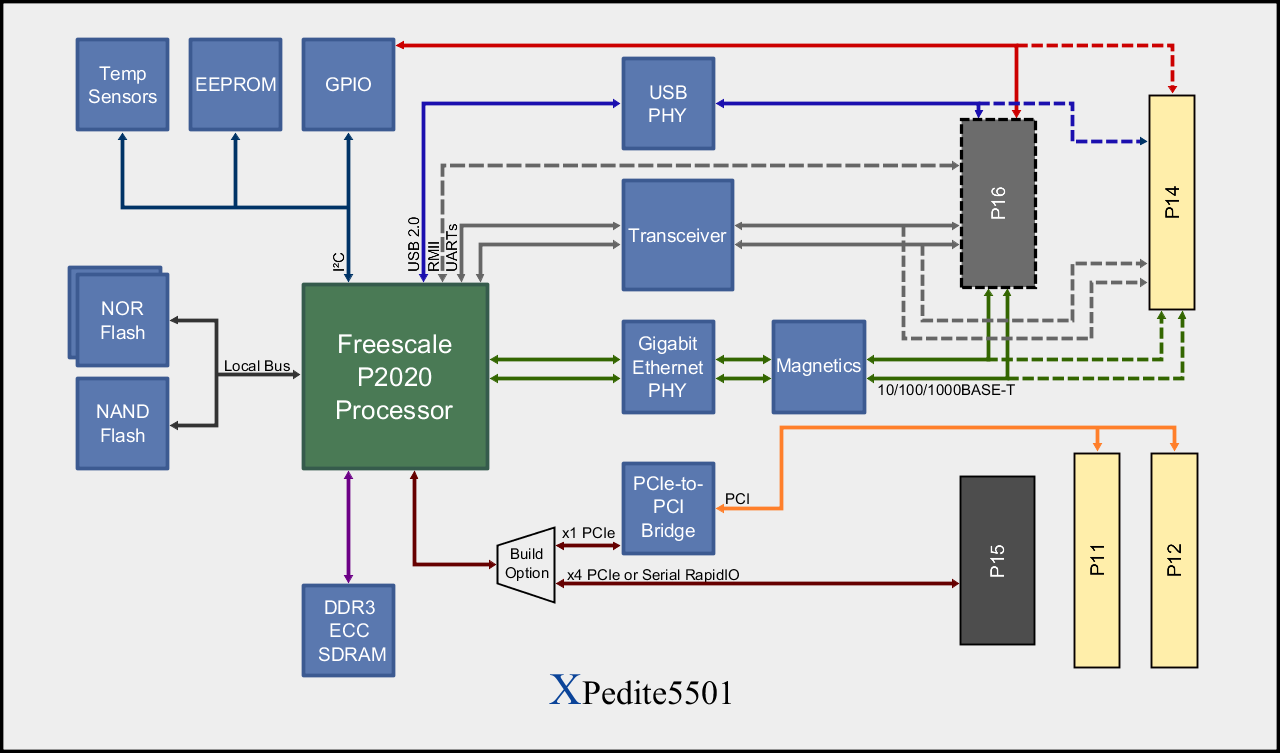

The XPedite5501 is a PrPMC / XMC single-board computer targeting the Freescale QorIQ P2020 processor. Hardware options range from commercial / air-cooled to full military conduction-cooled solutions. With dual PowerPC e500 cores running at up to 1.2 GHz, the P2020 delivers enhanced performance and efficiency for today's network information processing and other embedded computing applications.
Complementing processor performance, the XPedite5501 features up to 4 GB of DDR3-800 ECC SDRAM. A configurable SerDes interface (PCI Express or Serial RapidIO) to the XMC connector and a conventional PCI interface to the PMC connectors provide ample bandwidth to the P2020. Two Gigabit Ethernet ports, USB 2.0 port and two RS-232/422/485 ports are routed to P14 or P16 for additional system flexibility. A detachable front panel provides one 10/100/1000 Mbps Ethernet port and one RS-232 serial port for development.
The XPedite5501 provides a high-performance, feature-rich solution for current and future generations of embedded applications. Operating system support packages for the XPedite5501 include Wind River VxWorks, QNX Neutrino, Green Hills INTEGRITY, and Linux 2.6.
Technical Specifications
Processor
- Freescale QorIQ P2020 processor
- Dual PowerPC e500 cores at up to 1.2 GHz
- 512 KB of shared L2 cache
Memory
- Up to 4 GB DDR3-800 SDRAM
- Up to 256 MB of NOR flash (with redundancy)
- Up to 8 GB of NAND flash
PrPMC Interface
- 66/33-MHz PCI
- 32-bit bus interface
P15 XMC Interface
- Up to x4 configurable PCI Express or Serial RapidIO
P14/P16 PMC/XMC Interface
- Two 10/100/1000-Mbps Ethernet ports
- Two RS-232/422/485 ports
- 3.3V GPIO
- One USB 2.0 port
Software Support
- Linux LSP
- Wind River VxWorks BSP
- QNX Neutrino BSP
- Green Hills INTEGRITY BSP
Physical Characteristics
- Conduction-cooled PMC/XMC form factor
- Dimensions: 143.75 mm x 74 mm
Environmental Requirements
- Supported ruggedization levels (see chart below):
Level 1, Level, 2, Level 3, Level 4, Level 5 - Humidity: 0% to 95% non-condensing
Power Requirements
- Maximum power consumption:
13 W (estimated)
