XPort4101

The XPort4101 is a ruggedized, high-performance graphics XMC/PMC module.

The XPort4101 provides an AMD Radeon E2400 graphics controller supporting two independent displays, each either VGA or DVI. Both digital graphics ports are supported on the P16 I/O connector. Analog (VGA) ports may be routed via the P14 connector. Two mini-HDMI connectors may optionally be installed in the front panel area for development use.

The AMD Radeon E2400 graphics controller combines high-performance 2D/3D video acceleration with an integrated GDDR3 SDRAM controller and a high-speed x8 PCI-Express communications link, while consuming a limited amount of power.

The Conexant CX23888 video capture device provides flexible video capture from sources through the P14 I/O connector and/or through an optional front panel connector for development use.

• AMD Radeon E2400 graphics processor
• Conduction or air cooling
• 128 MB GDDR3 memory
• x8 PCI-Express interface
• Optional PCI-X support
• Dual display support
• WUXGA 1920 x 1200 DVI resolution
• Component and composite video capture
• OpenGL 2.0 support
• Microsoft Windows driver support
• Linux 2.6 BSP

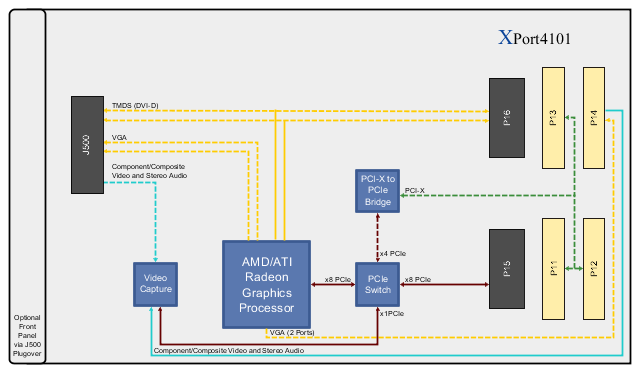

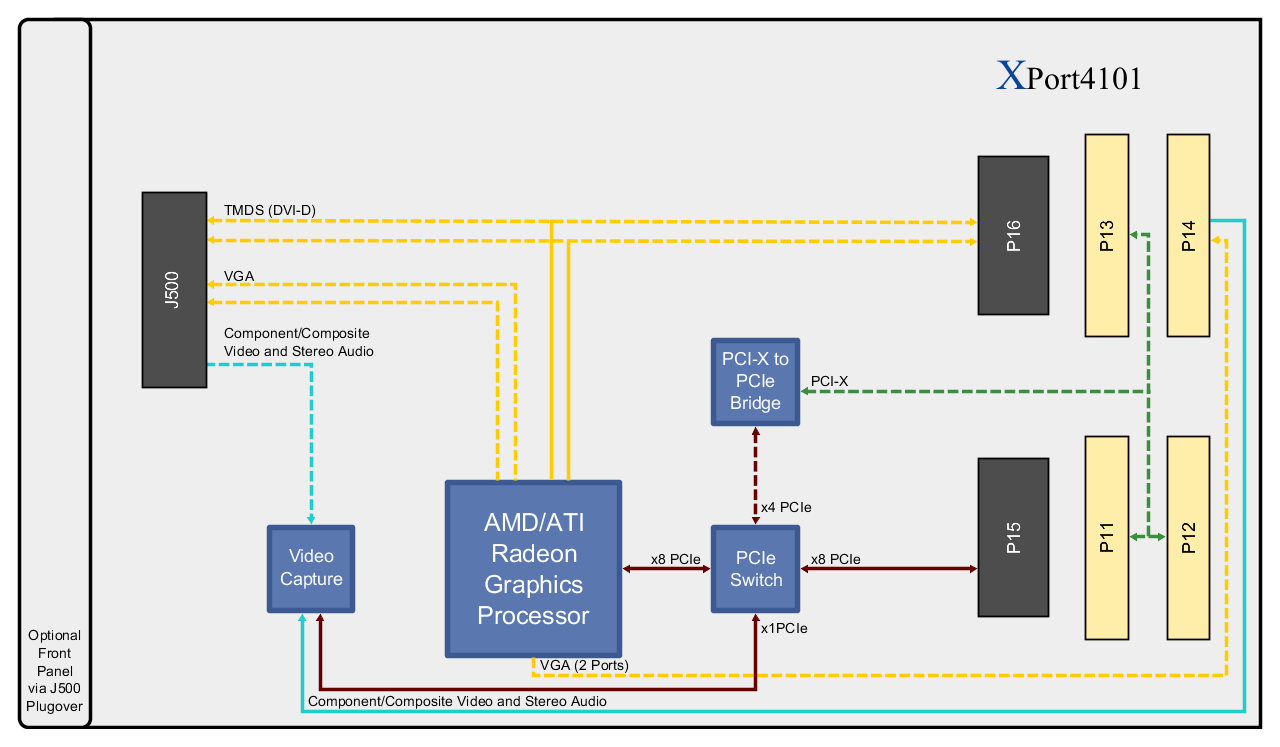

Click on the image above to view a larger version.

Graphics Controller

• AMD Radeon E2400
• 128MB GDDR3 SDRAM
• 2D/3D graphics
• Dual independent displays

Video Capture

• Conexant CX23888
• Multi-format video capture
• Stereo audio capture

Back Panel I/O

• x8 PCI-Express interface out the P15 XMC connector
• Optional two DVI ports out P16
• Optional two VGA ports out P14
• Component/composite video input from P14

Front Panel I/O

• Optional two front-panel mini-HDMI ports
• Other configurations possible - contact X-ES

Software Support

• Microsoft Windows Driver
• Linux 2.6 BSP

Physical Characteristics

• XMC form factor
• 149 mm x 74 mm
• 10-mm stacking height
• Requires optional secondary side thermal interfaces

Environmental Requirements

• Supported ruggedization levels (see the X-ES Ruggedization Chart): 1, 3, 5
• Conformal coating available as an ordering option

Power Requirements

• Maximum power consumption: 16 W (contact X-ES for lower power configurations)

Accessories

• Cable (90000160) - DVI, Mini-HDMI to HDMI, M to M, 2 m.
• Cable (90000165) - DVI, HDMI to HDMI, M to M, 2 m.
• Cable (90000170) - DVI, HDMI to DVI-D, M to M, 2 m.
• Cable (90000175) - DVI, Mini-HDMI to DVI-D, M to M, 2 m.
• Cable (90000180) - DVI, Dual-Link DVI-I to Dual-Link DVI-I, M to M, 2 m.
