XCalibur4341

Intel® Core™ i7 Processor-Based Conduction- or Air-Cooled 6U VPX Single Board Computer (SBC)

The XCalibur4341 provides two separate channels of up to 8 GB DDR3-1066 ECC SDRAM, two XMC/PrPMC slots, 32 MB of NOR flash and up to 128 GB of NAND flash. The XCalibur4341 also supports five Gigabit Ethernet ports, two DVI-D graphics ports, audio, I²C, PMC I/O, XMC I/O, and RS-232/422/485 serial ports out the front panel and/or backplane connector.

End of Life

Please contact X-ES Sales for assistance with choosing a recommended replacement product.

Learn more about this product below »
REQUEST A QUOTE ASK A QUESTION

Contact us directly at +1 (608) 833-1155

SKU: 90050215 Category:
XCalibur4341 6U VPX SBC

The XCalibur4341 is a high-performance, 6U VPX, multiprocessing, single board computer that is ideal for ruggedized systems requiring high bandwidth processing and low power consumption. With the Intel® Core™ i7 processor and Intel® QM57 chipset, the XCalibur4341 delivers enhanced performance and efficiency for today’s network information processing and embedded computing applications.

The XCalibur4341 provides two separate channels of up to 8 GB DDR3-1066 ECC SDRAM, two XMC/PrPMC slots, 32 MB of NOR flash and up to 128 GB of NAND flash. The XCalibur4341 also supports five Gigabit Ethernet ports, two DVI-D graphics ports, audio, I²C, XMC I/O, PMC I/O, and RS-232/422/485 serial ports out the front panel and/or backplane connector.

The XCalibur4341 is a powerful, feature-rich solution for the next generation of compute-intensive embedded applications. Operating system support for Wind River VxWorks, Microsoft Windows, QNX Neutrino, and Linux is available.

Features

  • Intel® Core™ i7-610E, -620LE, -620UE, and -660UE processors
  • Dual-core with Hyper-Threading Technology
  • 6U VPX module
  • OpenVPX™ standards-based
  • Conduction or air cooling
  • Up to 8 GB DDR3-1066 ECC SDRAM in two channels
  • 32 MB NOR boot flash
  • Up to 128 GB of NAND flash
  • Five Gigabit Ethernet ports
  • x8 Gen2 PCI Express ports from switch to CPU and XMC sites
  • Four x4 Gen2 PCI Express ports from switch to backplane
  • Two DVI-D graphics ports
  • Audio line I/O port
  • Four SATA ports on backplane
  • Three USB 2.0 ports (one to front panel and two to backplane)
  • Two RS-232/422/485 serial ports
  • Two PrPMC/XMC interfaces
  • Linux BSP
  • Wind River VxWorks BSP
  • QNX Neutrino BSP
  • Green Hills INTEGRITY BSP
  • Microsoft Windows drivers

Technical Specs

Processor

  • Intel® Core™ i7 processor operating at 2.53, 2.0, 1.06, or 1.33 GHz
  • Dual-core with Hyper-Threading Technology
  • Intel® QM57 chipset
  • Dual-channel integrated memory controller
  • Integrated graphics controller
  • 4 MB of shared cache

Memory

  • Up to 8 GB DDR3-1066 ECC SDRAM in two channels
  • 32 MB of NOR flash
  • Up to 128 GB of NAND flash
  • 16 kB I²C EEPROM

Graphics

  • Integrated high-performance 3D graphics controller
  • Two DVI-D (one to front panel, one to P6)

VPX

  • OpenVPX™ (VITA 65)
  • Four x4 Gen2 PCIe ports to P1
  • Two 1000BASE-BX Ethernet ports to P4
  • Two 10/100/1000BASE-T Ethernet ports
  • PMC and XMC I/O to P3, P4, P5, P6, mapping P3w1P4-P64s+X12d+X8d

PrPMC

  • PCI-X (64/32-bit, 100/66 MHz)
  • PCI (64/32-bit, 66/33 MHz)

XMC

  • x8 Gen2 PCIe ports to J15 and J25
  • One SATA port capable of 3 Gb/s to J26

Front Panel I/O (Optional)

  • One HDMI video interface
  • One 10/100/1000BASE-T Ethernet port
  • One USB 2.0 port
  • General-purpose LEDs

Back Panel

  • Two RS-232/422/485 serial ports
  • Two 10/100/1000BASE-T Ethernet ports
  • Two 1000BASE-BX Ethernet ports
  • Four SATA ports capable of 3 Gb/s
  • PMC I/O
  • Four USB 2.0 ports
  • Audio line I/O port

Software Support

  • Linux BSP
  • Wind River VxWorks BSP
  • QNX Neutrino BSP
  • Greens Hills INTEGRITY BSP
  • Microsoft Windows drivers

Environmental Requirements

Contact factory for appropriate board configuration based on environmental requirements.

  • Supported ruggedization levels (see the X-ES Ruggedization Chart): 1, 3, 5
  • Conformal coating available as an ordering option

Power Requirements

  • Power will vary based on configuration and usage. Please consult factory.

Accessories

  • XPand1011 (90072275) - Two-Slot 6U VPX Development Platform for Conduction-Cooled Modules with RTM I/O

Documentation

Datasheet

To view all of the information about this product in a PDF, please download the datasheet.

Download Datasheet

Technical Documents

SupportNet is your source for product manuals, technical support, and software downloads.

Access SupportNet

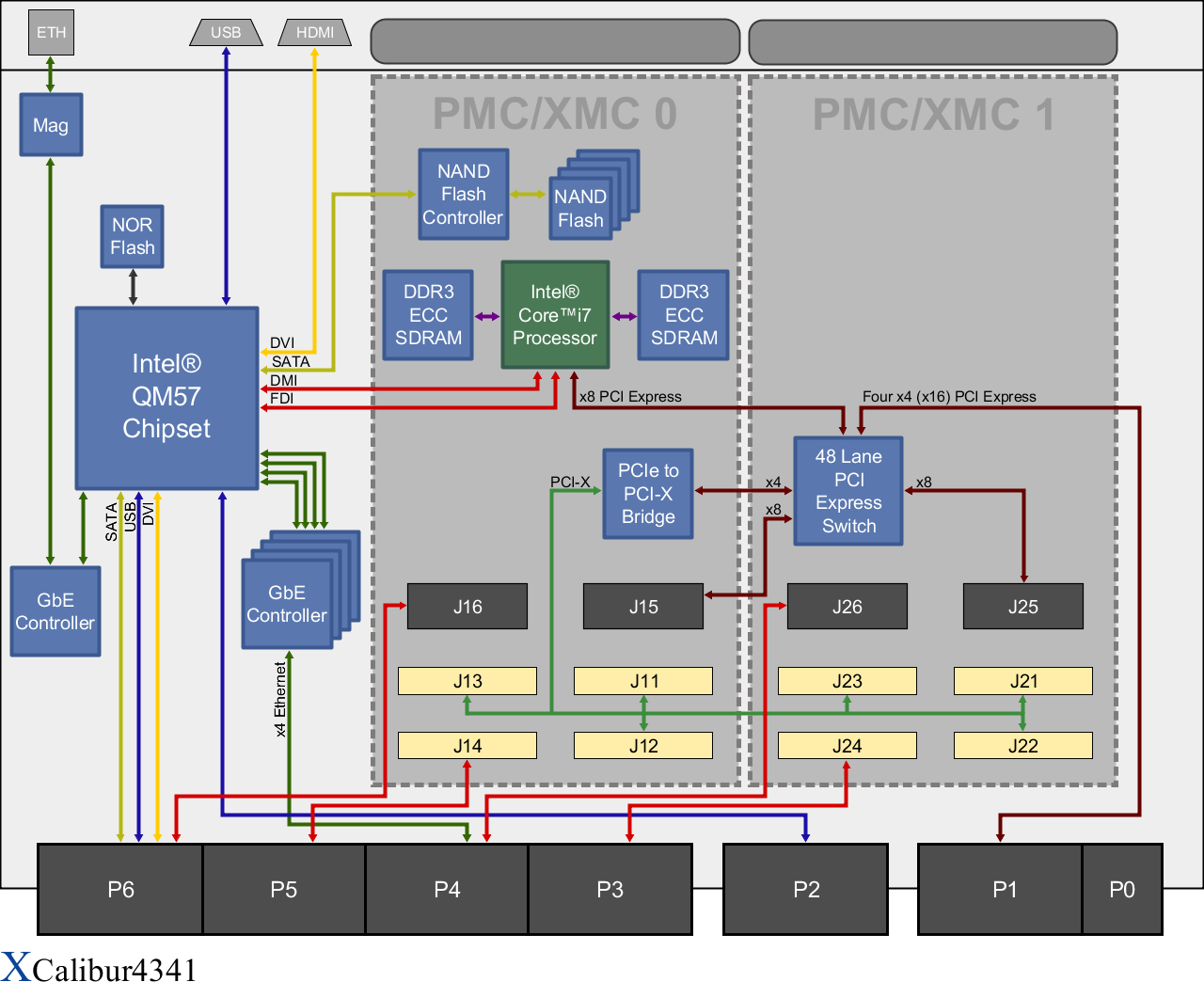

Block Diagram
