XPm2010

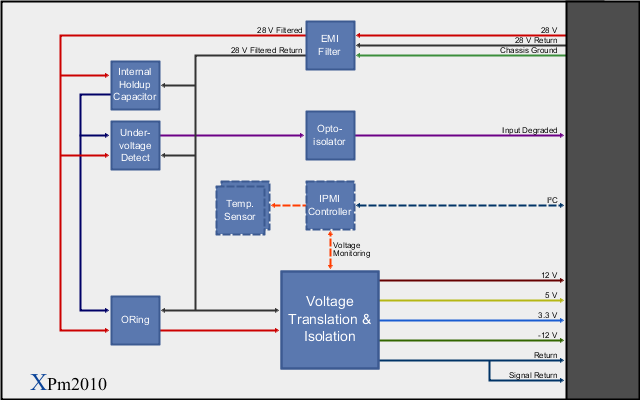

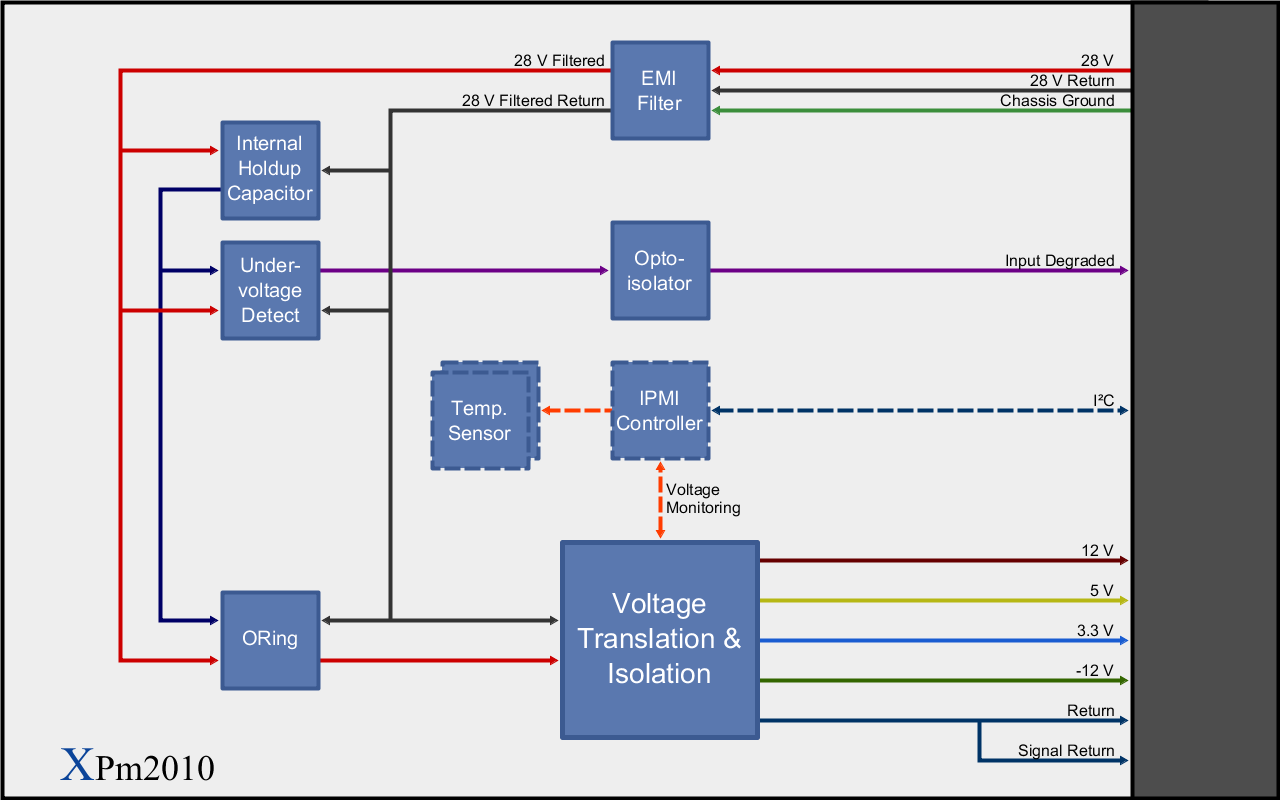

The XPm2010 is a PICMG 2.11 power supply that takes in a MIL-STD-704 28 VDC input voltage and provides up to 300 W on 3.3 V, 5 V, and ±12 V at up to 90% efficiency. The XPm2010 also provides on-card MIL-STD-461E EMI filtering.

The XPm2010 fits in a 3U cPCI slot. Up to 8.3 A on 12 V, 2 A on -12 V, 22 A on 5 V, and 25 A on 3.3 V can be supported on each rail, separately. The XPm2010 can provide up to a combined 300 W of total output power at maximum operating temperature.

The XPm2010 features an optional VITA 46.11 Tier 1 and Tier 2 Intelligent Platform Management Interface (IPMI) controller, which monitors board voltages and temperatures.

Features

• MIL-STD-704 28 VDC input voltage
• MIL-STD-461E EMI filtering
• PICMG 2.11 standard 47-position connector
• Up to 300 W output on 3.3 V, 5 V, and ±12 V
• On-card holdup capacitor for up to 40 ms (120 W symmetrical load distribution) of holdup time (optional)
• Up to 90% efficient
• -40°C to 85°C conduction-cooled operating temperature (at the thermal interface)
• Compliant to the VITA 48.2 Type 1, Two-Level Maintenance (2LM) standard
• VITA 46.11 Tier 1 and Tier 2 IPMI controller for on-card voltage monitoring (optional)

Technical Specs

Input Power

• MIL-STD-704 28 VDC (22 to 29 V)
• MIL-STD-461E EMI filtering

Output Power

• Up to 90% efficient
• Supports up to 300 W in total combined power output
• 3.3 V at up to 25 A
• 5 V at up to 22 A
• 12 V at up to 8.3 A
• -12 V at up to 2 A

Holdup

• On-card holdup capacitor for up to 40 ms (120 W symmetrical load distribution) of holdup time (optional)

Physical Characteristics

Contact factory for CAD model if desired

• 3U cPCI form factor
• PICMG 2.11 standard 47-position connector
• 0.8 in. pitch
• 1.45 pounds (with on-card holdup capacitor)
• 1.1 pounds (without on-card holdup capacitor)

IPMI Controller (Optional)

• VITA 46.11 Tier 1 and Tier 2 IPMI Controller (IPMC)
• Monitors voltages
• Monitors temperature sensors
• Connects to backplane via system management bus (I²C)

Environmental Requirements

Contact factory for appropriate board configuration based on environmental requirements.

• Supported ruggedization levels (see the X-ES Ruggedization Chart): 5
• Conformal coating available as an ordering option
