X-ES’ New Server-Class Products Provide an Industry-Leading Combination of Security, Ruggedization, and Performance
Extreme Engineering Solutions (X-ES) introduces the XAct1012, XCalibur1412, and XPand9011 – three server-class computing products featuring dual Intel® Xeon® E5 v4 family processors. These products come integrated with X-ES SecureCOTS technology, ideal for platforms requiring state-of-the-art processing performance, physical security, and Cybersecurity.
Best-in-Class Security from a Trusted US Company
As with all X-ES products, the XAct1012, XCalibur1412, and XPand9011 are wholly designed, manufactured, and supported in the United States. X-ES is committed to the implementation of a comprehensive and multi-faceted counterfeit parts prevention plan, using COTS components from trusted domestic supply chains to ensure the quality and security of our products.
Each of our new Intel® Xeon® E5 v4 based products is designed with X-ES’ SecureCOTS™ technology to prevent reverse engineering and the extraction of critical information, providing superior security for standard form factors. These products are equipped with a tightly coupled AMD (formerly Xilinx) Kintex® UltraScale™ security FPGA with over a million logic elements, enabling an industry-leading combination of security and performance.
Secure Intel® Xeon® E5
Server-Class Computing Products
XPand9011
Secure 2U Rackmount Server
The XPand9011 provides an industry-leading combination of security, performance, and flexibility for a rackmount server.
It features dual Intel® Xeon® E5-2600 family v4 (formerly Broadwell-EP) processors with a tightly coupled AMD (formerly Xilinx) Kintex® UltraScale™ security FPGA, two 40 Gigabit Ethernet ports, and six PCI Express Gen3-capable expansion sites.
View XPand9011

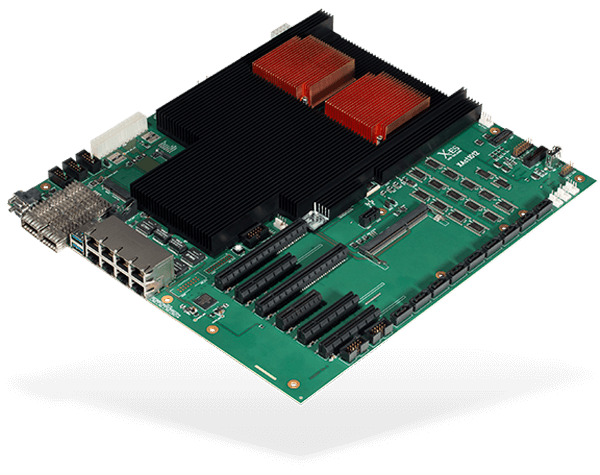

XAct1012
ATX-Class Server Motherboard
XAct1012 features dual Intel® Xeon® E5-2600 family v4 (formerly Broadwell-EP) processors with a tightly coupled AMD (formerly Xilinx) Kintex® UltraScale™ security FPGA, two 40 Gigabit Ethernet ports, and six PCI Express expansion sites.
The XAct1012 also integrates ruggedization features that enable it to perform in environmentally challenging applications without modifications or enhancements.
View XAct1012
XCalibur1412
AdvancedTCA (ATCA) Blade
The XCalibur1412 with SecureCOTS™ technology provides an industry-leading combination of security and performance for an AdvancedTCA (ATCA) processing blade.
It features dual Intel® Xeon® E5-2600 v4 family processors (formerly Broadwell-EP) with a tightly coupled AMD (formerly Xilinx) Kintex® UltraScale™ security FPGA and two up to 56 Gb/s InfiniBand or 40/56 Gigabit Ethernet ports.
View XCalibur1412
Rugged COTS Designs with Server-Class Performance
The XAct1012, XCalibur1412, and XPand9011 are the newest additions to X-ES’ extensive product lineup and are the first to support dual Intel® Xeon® E5-2600 v4 (formerly Broadwell-EP) family processors. These server-class products include up to 128 GB of soldered-down DDR4-2400 ECC SDRAM across eight channels.
They are also true Open Systems Architecture (OSA) designs, providing a simplified path to future upgradability and eliminating the vendor-lock commonly associated with proprietary implementations.
Most server-class products advertised as rugged are actually based on foreign-designed and manufactured commercial motherboards modified by a system integrator attempting to create a rugged and reliable product.
X-ES’ server-class processing boards are different because they have board-level ruggedization features built-in, enabling them to perform reliably in harsh environmental conditions common for military and aerospace applications without the need for modification or enhancement.
The XPand9011 is a secure 2U rackmount server based on the XAct1012 motherboard. It includes dual 40 Gigabit Ethernet ports and six standard PCI Express Gen3-capable expansion sites that simplify support for a near unlimited number of high-performance and legacy I/O options by utilizing COTS modules.
With these features, the XPand9011 provides an unparalleled blend of security, performance, and flexibility for a computing system.
The XAct1012 and XCalibur1412 are rugged server-class processing boards that are ready for out-of-the-box installation into a COTS chassis. The XAct1012 is a server motherboard that supports a standard Extended ATX (E-ATX) form factor and includes six standard PCI Express expansion slots. The XAct1012 is suitable for installation within a COTS E-ATX tower or 1U/2U/3U rackmount chassis.
The XCalibur1412 is an ATCA blade with two high-speed fabric ports capable of supporting up to 56 Gigabit per second InfiniBand or Ethernet.
The X-ES Enterprise Linux (XEL) Board Support Package (BSP) is standard with these products, but other BSPs are available upon request. Please contact the factory for additional OS support options.
