XIt1025

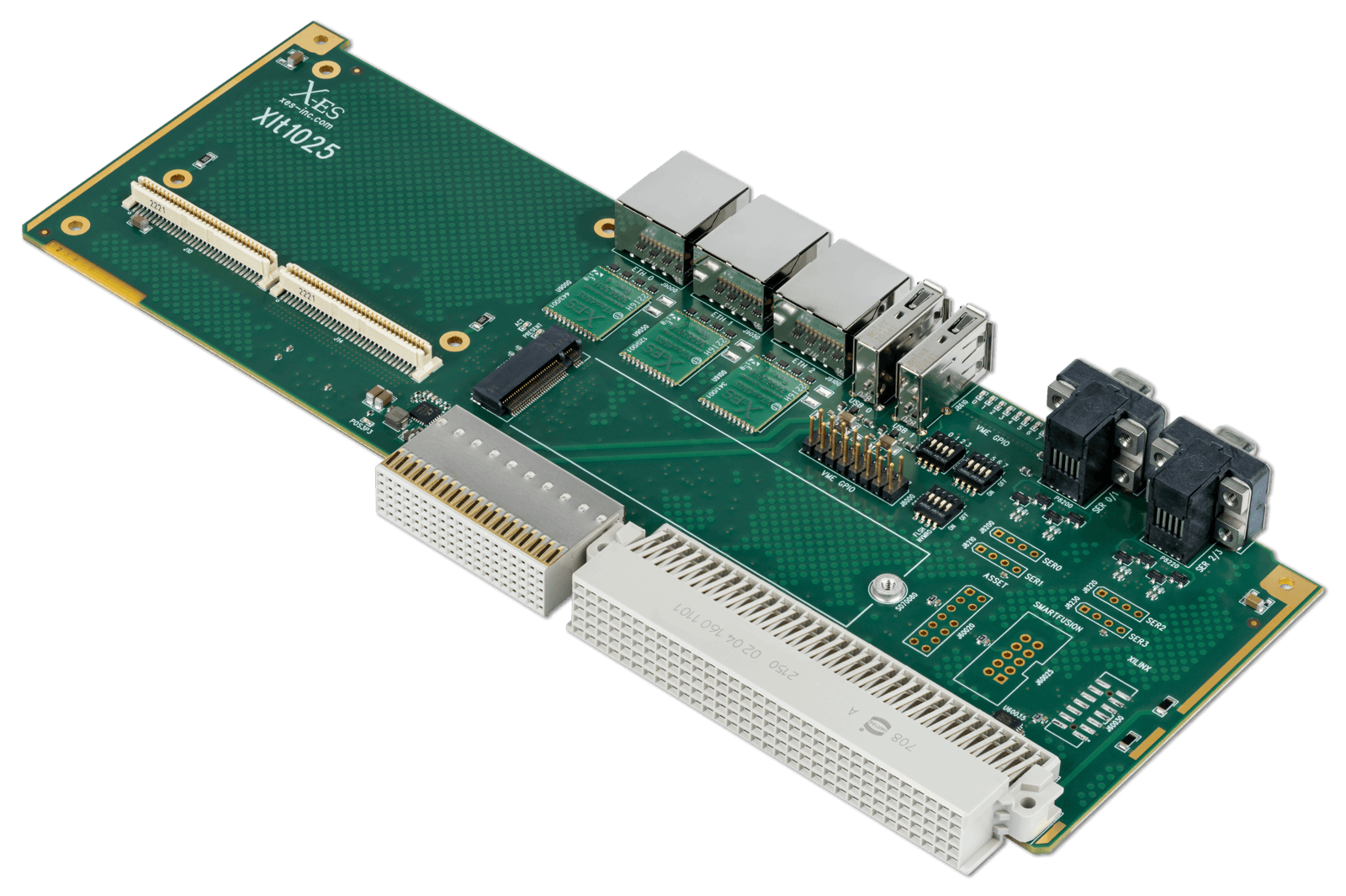

The XIt1025 is a 6U VME rear transition module designed specifically to match the XCalibur4730 6U VME SBC pinout.

The XIt1025 supports three 10/100/1000BASE-T Ethernet ports, four RS-232/422/485 serial ports, two USB 2.0 ports, and one PIM site.

Features

• 6U VME Rear Transition Module (RTM)
• Three 10/100/1000BASE-T Ethernet ports
• Four RS-232/422/485 serial ports
• Two USB 2.0 ports
• Supports one PIM (PMC I/O Module) interface to route PMC I/O out the back panel
• One M.2 site to support one x1 PCI Express interface

Technical Specs

Back Panel I/O

• Three 10/100/1000BASE-T Ethernet ports
• Four RS-232/422/485 serial ports
• Two USB 2.0 ports

Internal I/O

• One PIM (PMC I/O Module) interface to route PMC I/O out the rear panel
• One M.2 site to support one x1 PCI Express interface

Environmental Requirements

Contact factory for appropriate board configuration based on environmental requirements.

• Supported ruggedization levels (see the X-ES Ruggedization Chart): 1
• Conformal coating available as an ordering option

Physical Characteristics

• 6U VME RTM form factor
• Fits in VITA 46.10 RTM slots
• Overall dimensions: 85 mm x 233 mm
• 1.0 in. pitch

Accessories

Documentation

Datasheet

To view all of the information about this product in a PDF, please download the datasheet.
